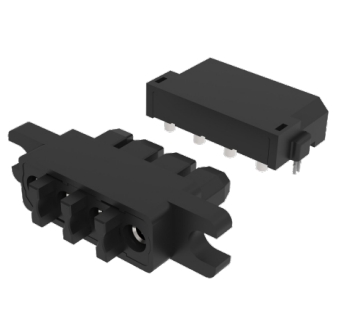

141027B Line to Board Power Signal Connector 4 Pins

Application

Power transmission of power modules such as communication equipment, charging equipment and energy storage equipment.

141027B Power Signal Connector Description

1. Termination Methods: Bent plate connection in pin terminal, crimping in hole terminal

2. Lock mode: Line to Board

3. Cable specification: 10mm²（AWG 7)

4. Plastic shell, Fool-proofing design

Specification

1. Number of Pins: 4

2. Current Rating: 40A

3. Voltage Rating: 600V AC

4. Insulation Resistance: ≥3000MΩ

5. Dielectric Withstanding Voltage: 3000V AC

6. Temperature Range: -40℃~+125℃

7. Protection level IP Code: IP20

8. Mechanical Life: 500 times

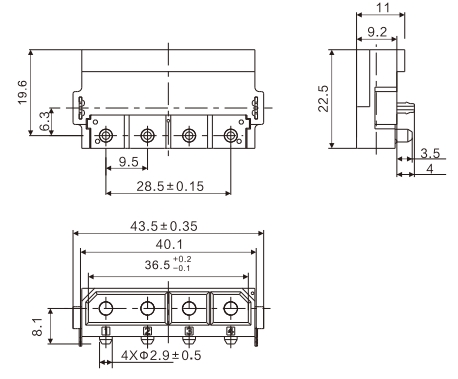

141027B Plug

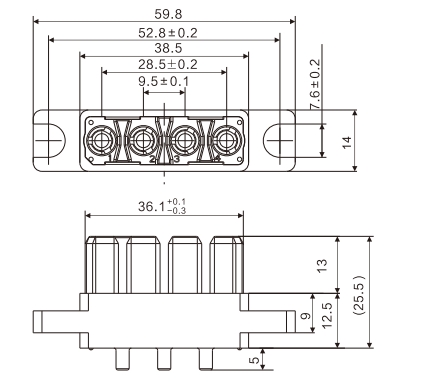

141027B Socket

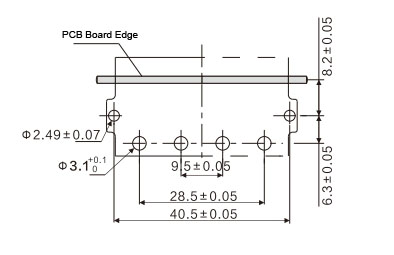

141027B Plug Opening Dimensions

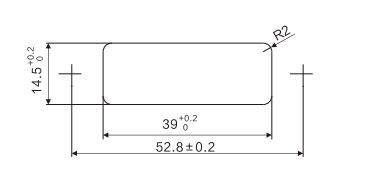

141027B Socket Opening Dimensions
