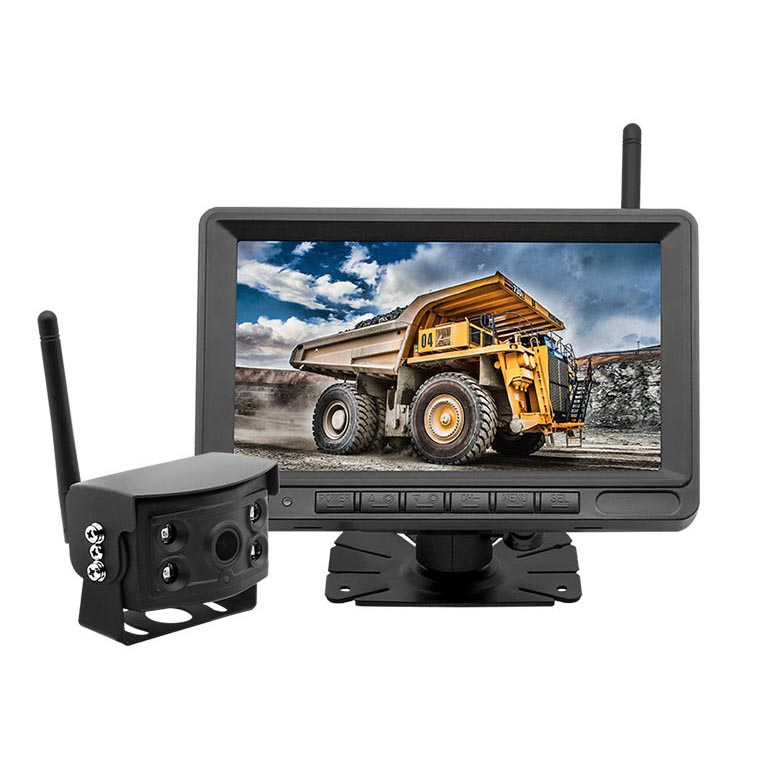

2.4Ghz Wireless Rearview Systems with Waterproof Camera

MONITOR SPECS

1. Panel: 7″ digital panel

2. Screen ratio: 16:9

3. Resolution: 1024(H) X RGB X600(V)

4. Back light, Luminance: LED, 350cd/m2

5. Viewing Angle: up-50°. DOWN-70° RIGHT-70°

6. System: PAL / NTSC

7. Power Supply: DC12V-DC36V

8. Video: 2-Channel Video Input, V1/V2 Switch

CAMERA SPECS

1. Image sensor: 1/3 Inch Color

2. Active Pixels: 960(H)*576(V)

3. TV System: PAL/NTSC

4. Viewing angle: 150 degree

5. Horizontal Resolution: 960 TV Lines

6. Waterproof rating: IP68K

7. Maximum current: <250mA

8. Minimum illumination: 0.1Lux(0 when LED is on)

9. Power supply: DC12V-DC36V
