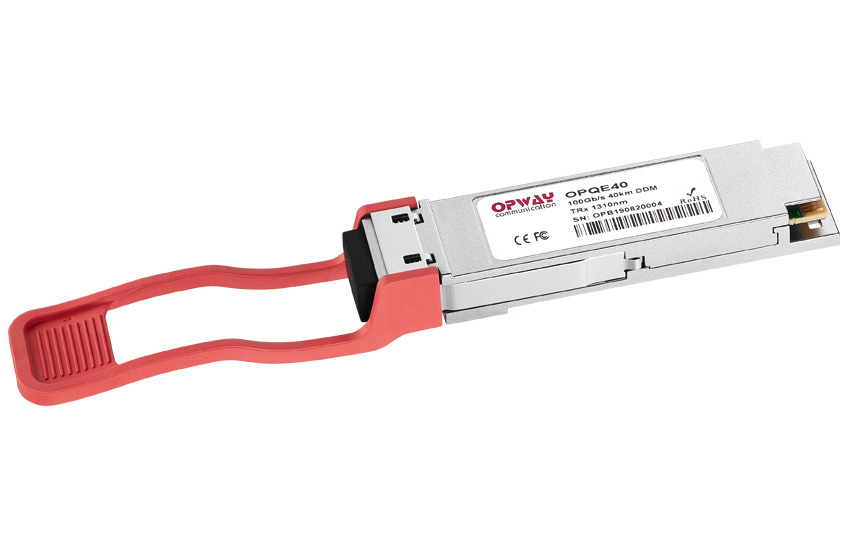

100G QSFP28 Series Optical Transceiver with I2c Interface

100G QSFP28 Application

100G Data center internal network/

Data center interconnection/MAN

100G QSFP28 Features

• Hot-pluggable QSFP28 package

• Compliant with QSFP28 MSA

• Four channels design, supports 25.78Gb/s data rate or

• 27.95Gb/s data rate single channel

• Maximum link up to 80km

• Single +3.3V power supply

• Operating temperature range:0~70℃

• Built-in digital diagnostic functions

• RoHS compliant

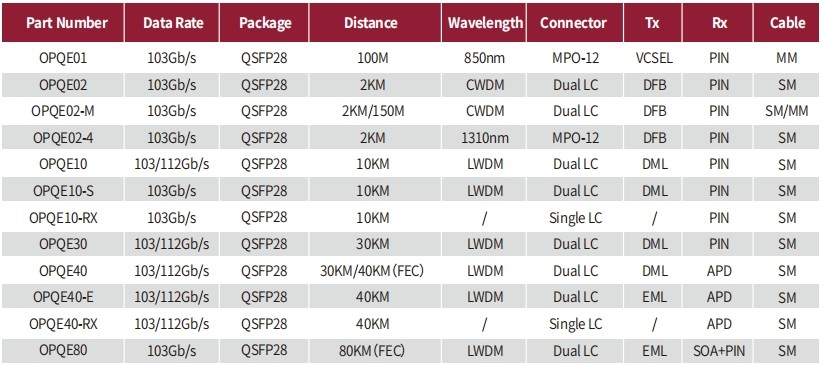

100G QSFP28 Parameter

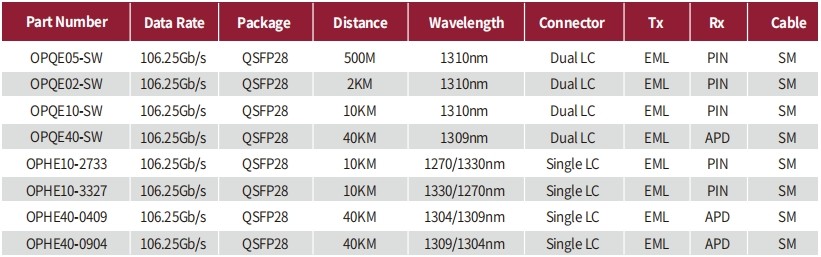

Other 100G QSFP28 Solutions - 100G QSFP28 Single Lambda

Application of 100G QSFP28 Single Lambda

100GBASE Ethernet

Telecommunication transmission network

Features of 100G QSFP28 Single Lambda

• Hot-pluggable QSFP28

• Compliant with 100G Lambada MSA

• Single channel design, supports 106.25Gb/s data rate

• Maximum link up to 40km

• Single +3.3V power supply

• Operating temperature range:0~70℃

• Built-in digital diagnostic functions

• RoHS compliant
