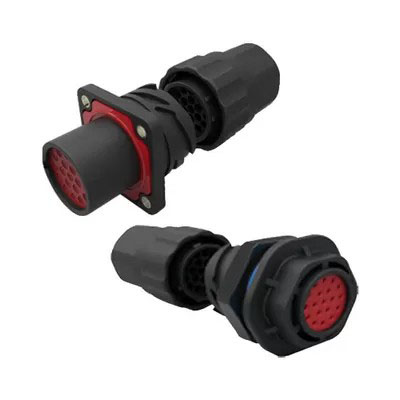

YG927 IP67 Signal Transmission Cable Plug Socket Connector

The YG927 transmission cable connector features a spiral construction and is designed for applications such as battery packs and PDUs. Cables range from 0.5mm² to 1.5mm² and feature error-proof designs to ensure safe, error-proof connections.
Products Inquiry

PRODUCT INFORMATION

Application

BatteryPack, PDU


YG927 Transmission Cable Connector Description

  • Wire diameter range: Helical Structure

  • Cable Range: 0.5mm²~1.5mm²

  • Poka-yoke


Specification

  • Number of Pins: 19

  • Rated Current: 5A(0.5mm²), 5A(0.75mm²), 8A(1mm²), 10A(1.5mm²)

  • Rated Voltage: 24V

  • Dielectric Withstanding Voltage: 1000V AC

  • Insulation resistance: ≥5000MΩ

  • Working Temperature Range: -40℃~+125℃

  • Protection level IP Code: IP67

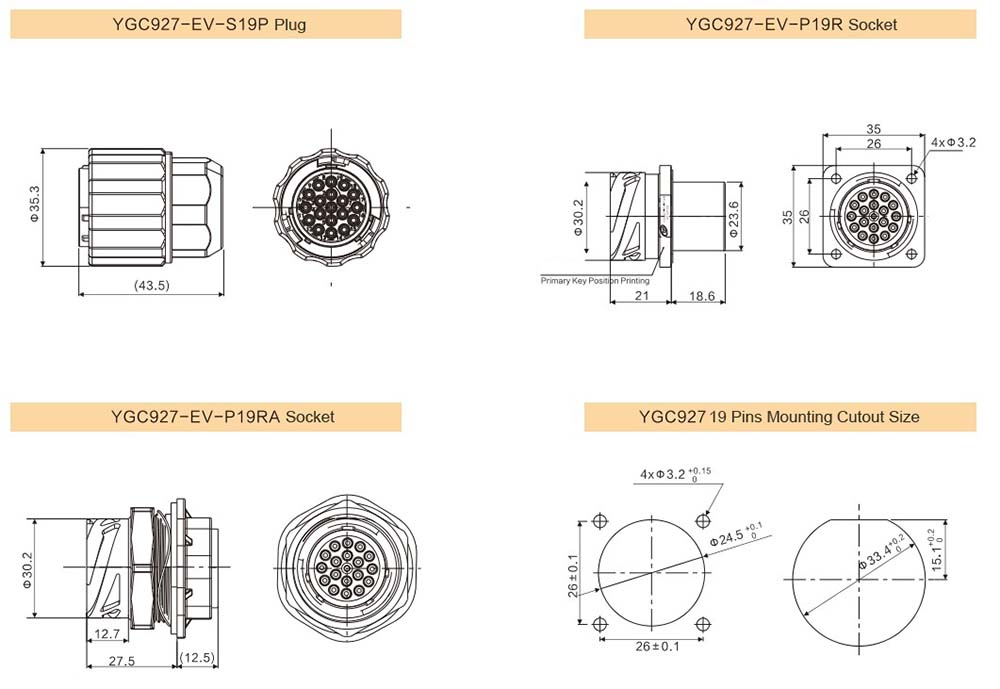

YG927 transmission cable connector.jpg
