ESC-HP200 Electrical Connector Single Core Energy Storage

Application

• Power transmission of energy storage system (battery pack).

Description

1. Anti-electric shock protection Touch-proof

2. Color/keying dumb Poka-yoke: Orange for positive, Black for negative

3. 360° Rotation and insertion

4. Cablerange: 35mm²~50mm²

5. Low temperature rise: ≤45K

6. Lock mode: Switch button

Specification

1. The number of pins: 1

2. Current Rating: 150A(35mm²), 200A(50mm²)

3. Voltage Rating: 1500V DC

4. Dielectric withstanding voltage: 6800V DC

5. Insulation Resistance: ≥100M Ω

6. Temperature Range: -40°C~+125°C

7. Protection grade IP Code: IP67/IP40 (optional)

8. Socket For: IP67/IP40 (optional)

9. Mechanical Life: 200 times

10. Certification: CE, UL4128

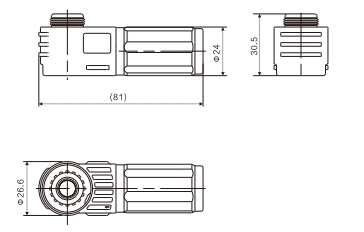

ESC-HP200 Plug

ESC-HP200 Socket

ESC-HP200 Installation Opening Dimensions
