YG1079 HVIL Plastic Shell Connector Touch- proof

YG1079 plastic housing connector has a secondary locking function and error-proof design to ensure a safe connection. It has high-voltage interlock (HVIL) and anti-shock function.
Products Inquiry

PRODUCT INFORMATION

YG1079 Plastic Housing Connector Description

  1. Secondary Lock Function

  2. Cable Range: 25~50mm²

  3. Poka-yoke

  4. High Voltage Interlock / HVIL

  5. Touch-proof

  6. 360*shielding

  7. Application: Battery, Motor Controller, E-Motor


Parameters

  • Rated Current:

Power 120A(25mm) 150A(35mm²) 200A(50mm²)

Signal 2A(0.5/0.75mm²)

  • Rated Voltage:

Power 1000V(AC/DC)

Signal 24V(AC/DC)

  • Dielectric With standing Vdltage:

Power 3000V AC 50HZ (Normal)

Signal 1000V AC 50HZ (Normal)

  • Operating Temperature Range: -40 ℃ ~ +125 ℃

  • Protection level IPRating: IP67&IP6K9K, IPXXB

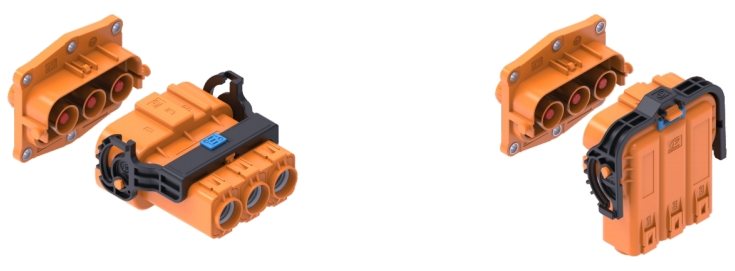

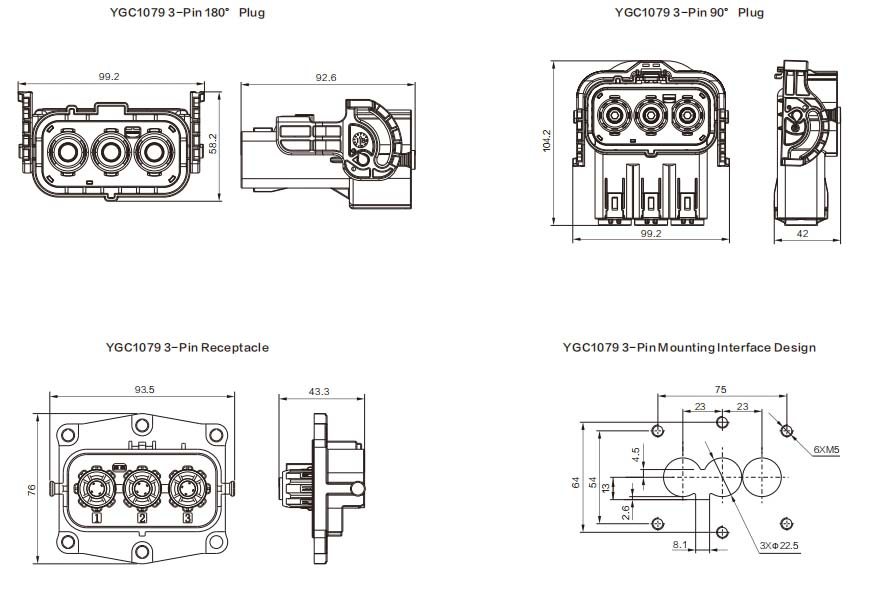

plastic shell connector yg1079.jpgyg1079 plastic shell connector 3 pins.jpgygc1079 plastic shell connector 3 pin.jpg
