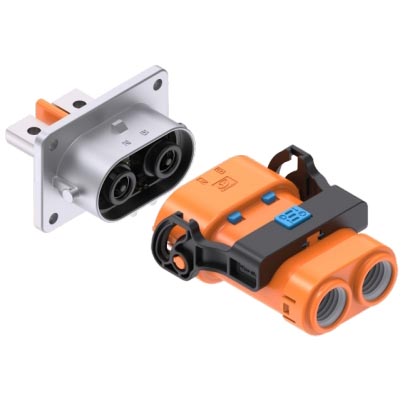

360° Shielding YG1 127 Plastic Housing Connector Anti-electric Shock

The YG1 127 plastic shell connector provide 360° shielding to prevent electric shock. Cable diameters range from 25mm² to 50mm² and are used in batteries, motor controllers and electric motors.
Products Inquiry

PRODUCT INFORMATION

YG1 127 Plastic Shell Connector Description

  • Cable Range: 25~50mm²

  • Poka-yoke

  • High voltage interlock / HVIL

  • Touch-proof

  • 360° Shielding

  • Application: Battery, Motor Controller, E-Motor


Performance Parameters

  • Rated Current:

Power 120A(25mm²) 150A(35mm²) 200A(50mm²)

Signal 2A(0.5mm²)

  • Rated Voltage:

Power 1000V(AC/DC)

Signal 24V (AC/DC)

  • Dielectric Withstanding Voltage:

Power 3500V AC 50HZ (Normal)

Signal 1000V AC 50HZ (Normal)

  • Operating Temperature Range: -40℃~+125

  • Protection level IPRating: IP67&IP6K9K, IPXXB
