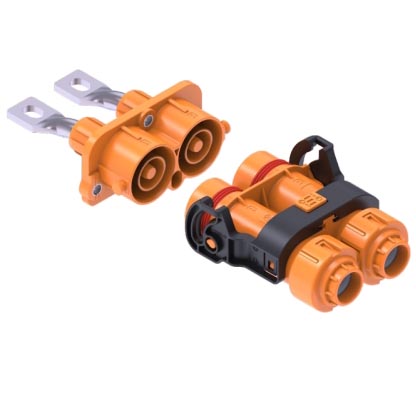

YG1388 2-Pin Poka-yoke Plastic Shell Connector 35 to 50mm²

YG1388 2-Pin Housing Connector Parameters

• Rated Current: Power 150A(35mm²) 200A(50mm²); Signal 2A(0.5mm²)

• Rated Voltage: Power 1000V (AC/DC); Signal 24V (AC/DC)

• Dielectric Withstanding Voltage: Power 3000V AC 50HZ (Normal); Signal 1000V AC 50HZ (Normal)

• Operating Temperature Range：-40℃~+125℃

• Protection level IPRating: IP67&IP6K9K, IPXXB

Description about Plastic Shell Connector YG1388

• Secondary Lock Function

• Cable Range: 35~50mm²

• Poka-yoke

• High-voltage interlock / HVIL

• Touch-proof

• 360° Shielding

• Application: Battery, Motor Controller, E-Motor
