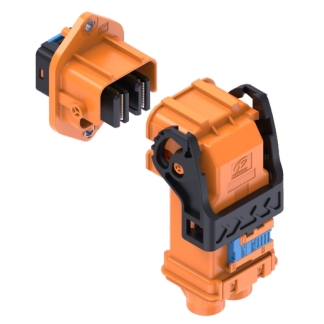

YG1266 Secondary Lock Function Plastic Shell Connector 1000V

The YG1266 plastic case connector is suitable for applications such as batteries, PDUs and BDUs, with cable ranges from 35mm² to 50mm², and features High Voltage Interlock (HVIL), shock protection and 360° shielding for enhanced safety.
Products Inquiry

PRODUCT INFORMATION

1000V YG1266 Plastic Shell Connector Description

  1. Secondary Lock Function

  2. Cable Range: 35~50mm²

  3. Poka-yoke

  4. High Voltage Interlocking / HVIL

  5. Touch-proof

  6. 360° Shielding

  7. Application: Battery, PDU, BDU


Plastic Housing Connector YG1266 Parameters

  • Rated Current:

Power 150A (35mm²) 250A(50mm²)

Signal 2A (0.5mm²)

  • Rated Voltage:

Power 1000V(AC/DC)

Signal 24V(AC/DC)

  • Dielectric Withstanding Voltage:

Power 3000V AC 50HZ (Normal)

Signal 1000V AC 50HZ (Normal)

  • Operating Temperature Range: -40℃~+125℃

  • Protection level IPRating: IP67&IP6K9K, IPXXB
