ESC-M10B-(4C100+12C10) Electrical Power Signal Mixed Connector

Application

Power and signal transmission of household energy storage system (battery pack).

ESC-M10B-(4C100+12C10) Connector Description

• Multi-functional modules are supported

• Number of modules：3

• Floating tolerance: ±2mm

• Cable range: 6mm²-25mm²/0.14mm²~2.5mm²

• Low temperature rise: ≤45K

• Termination Methods: Crimp termination

Technical Parameters

• number Pins: 4+12

• Current Rating: 100A/10A

• Voltage Rating: 1000V/250V

• Dielectric Withstanding Voltage:4260V/2210V AC

• Insulation Resistance: ≥100MΩ

• Operating Temperature Range: -40℃~+125℃

• Mechanical Life: 500 times

• Certification: CE, UL1977

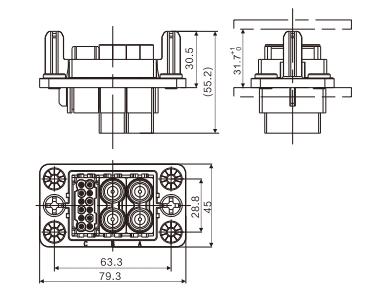

ESC-M10B-(4C100+12C10) Plug (Pin) Side

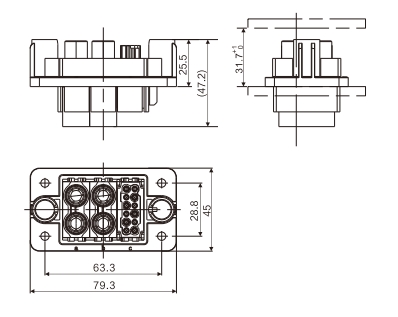

ESC-M10B-(4C100+12C10) Socket (Jack) Side

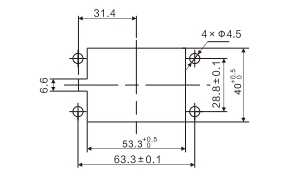

ESC-M10B-(4C100+12C10) Opening Size
