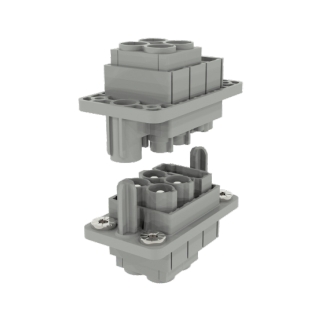

ESC-M10B-(4C70+12C10) Electrical Connector 3 Modules 16 Pins

Application

Power and signal transmission of household energy storage system (battery pack).

ESC-M10B-(4C70+12C10) Connector Description

1. Multi-functional modules are supported

2. Number of modules: 3

3. Floating tolerance: ±2mm

4. Cable range: 6mm² ~ 25mm²/0.14mm² ~ 2.5mm²

5. Low temperature rise: ≤45K

6. Termination Methods: Cold Crimp termination

Specification

1. Number of Pins: 4+12

2. Current Rating: 70A/10A

3. Voltage Rating: 1500V/250V

4. Dielectric Withstanding Voltage: 6800V/2210V AC

5. Insulation Resistance: 100MΩ

6. Temperature Temperature Range: -40℃~+125℃

7. Mechanical Life: 500 times

8. Certification: CE, UL1977

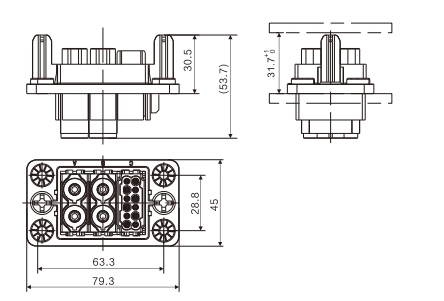

ESC-M10B-(4C70+12C10) Plug (Pin) Side

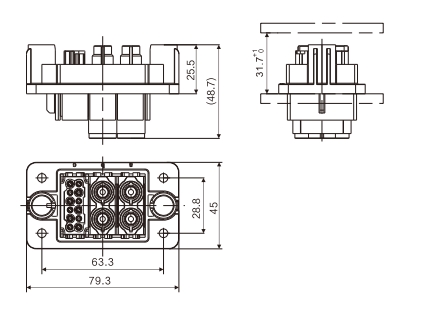

ESC-M10B-(4C70+12C10) Socket (Jack) Side

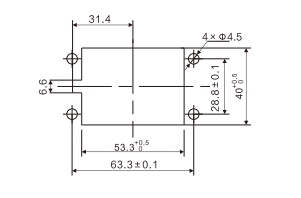

ESC-M10B-(4C70+12C10) Mounting Opening Dimensions
