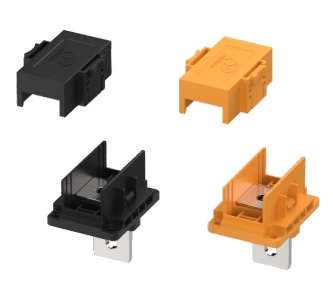

ESC-TB250 Waterproof 1 Pin Energy Storage Connector

Application

●Power transmission of energy storage system (battery pack)

ESC-TB250 Connector Description

1. Power transmission

2. Color/Key Poka-yoke: Orange for positive, Black for negative.

3. Cable range: 50mm²~70mm²

4. Low temperature rise: ≤45K

5. Lock mode: Screw

6. Termination Methods: Screw locking

Specification

1. Number of cores: 1

2. Current Rating: 200A (50mm²), 250A (70mm²)

3. Voltage Rating: 1500VDC

4. Dielectric Withstanding Voltage: 6800V DC

5. Insulation Resistance: ≥100MΩ

6. Temperature Range: -40℃~+125℃

7. Protection level IP Code: IP20

8. Mechanical Life: 50 times

9. Certification: CE

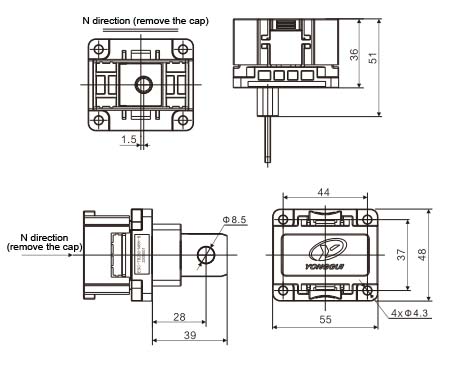

ESC-TB250-M8H-B/Y Connector

ESC-TB250-M8H-B/Y Mounting Opening Dimensions
