ESC-TB350 1 Pin Electrical Connector Power Transmission

Application

Power transmission of energy storage system (battery pack).

ESC-TB350 Electrical Connector Description

1. Power transmission

2. Color/Key Poka-yoke: Orange for positive, Black for negative.

3. Wire diameter Cable range: 95mm²~120mm²

4. Low temperaturerise rise: ≤45K

5. Lock mode: Screw

6. Termination Methods: Screw locking

Specification

1. Number of Pins: 1

2. Current Rating: 300A(95mm²), 350A(120mm²)

3. Voltage Rating:1500V DC

4. Dielectric Withstanding Voltage: 6800V DC

5. Insulation Resistance: ≥100MΩ

6. Operating Temperature Range: -40℃~+125℃

7. Protection level IP Code: IP20

8. Mechanical Life: 50 times

9. Certification: CE

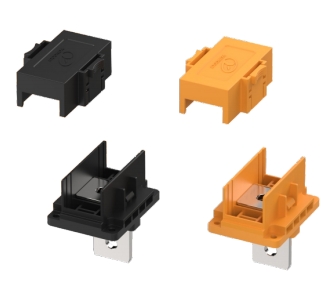

ESC-TB350-M8H-B/Y Connector

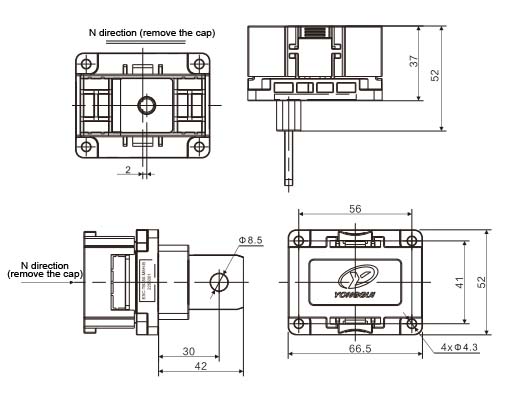

ESC-TB350-M8H-B/Y Mounting Opening Dimensions
