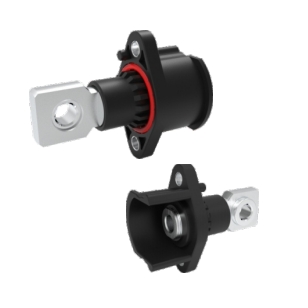

YG196-380 Single Core High Current Connector for Energy Storage

Application

• Electric Vehicle Distribution Systems, Motors, Electronic Controls

• Distribution Systems, E-Motor, Motor Controller

YG196-380 Connector for Energy Storage Description

• Wire diameter Cable range: 70mm²

• Plastic Shell

Specification

1. Rated Current: 250A(70mm²)

2. Rated Voltage: 800V

3. Dielectric Withstanding Voltage: 3800V AC

4. Insulation resistance: ≥100MΩ

5. Operating Temperature Range:-40℃~+125℃

6. Mechanical Life: 50 times

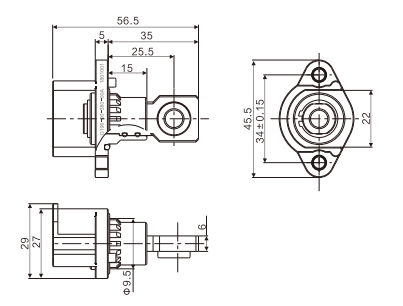

YG196-380 A Type Connector

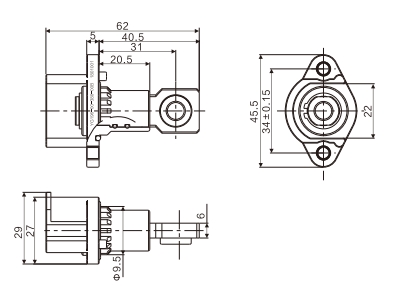

YG196-380 B Type Connector

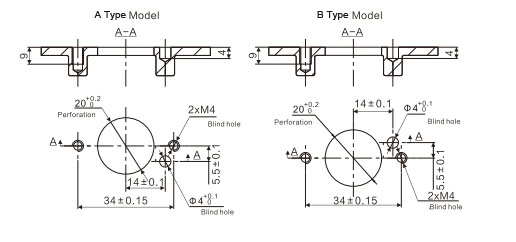

YG196-380 Installation Opening Size
